Taped Litz wire
Taped Litz wire is an electromagnetic wire formed by coating the surface of enameled litz wire with a layer of PET film or PI film at a certain overlap rate.
Taped litz wire is widely used in: high-frequency transformers, high-frequency coils and other high-frequency application fields of electronic components.
Taped litz wire is widely used in: high-frequency transformers, high-frequency coils and other high-frequency application fields of electronic components.
Product details

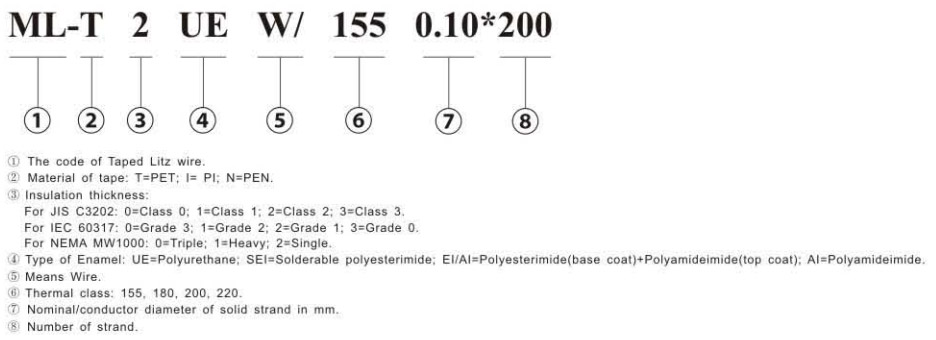

Technical Parameter
产品说明
This is a wire or Litz wire wrapped with a Mylar or other tapes made from different material and at certain overlapping rate.
Features
Taped Litz wire has all the features of Litz wire.
High insulation strength.
High thermal performance.
High resistance to radiation (PItape).
Product range
Overlapping:50%,67%,75%
Number of stands:1-36000
Diameter of strand: From 0.020mm up to 0.60mm
Type of strand: UEW, SEIW, EI/AIW, AIW.
Overall diameter:0.25-10mm
Cross section area:Max.50mm²
Applications
Transformers requires for high Interlayer discharge voltage, motor, transformer and meter with requirements for high resistance to temperature and radiation.
