Self – bonding wire
Self-bonding enameled wire is an enameled wire with a self-bonding layer coated on the outside of the basic insulation layer. When heated or using solvents, the wires will bond together. The coil wound with self-bonding wire can be fixed and formed by heating or solvent.
Self-bonding enameled wire is widely used in: voice coils, microphones, receivers, TWS headphones, VCM motors, flat motors, hollow cup motors, inductors, buzzers, microphone heads, RFID cards, RFID tags, hollow coils, etc.
Self-bonding enameled wire is widely used in: voice coils, microphones, receivers, TWS headphones, VCM motors, flat motors, hollow cup motors, inductors, buzzers, microphone heads, RFID cards, RFID tags, hollow coils, etc.
Product details
Technical Parameter
Product Introduction

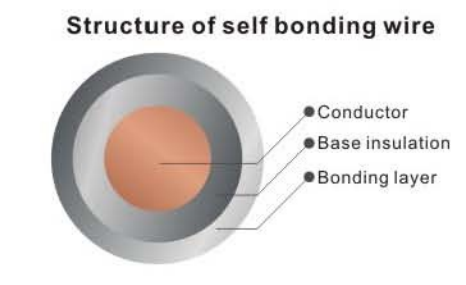

Self –bonding wire is a special wire that overcoated with a bonding layer on the base insulation, with this bonding layer, wires can be adhered to each other by heating or solvent. The coil wound by such wire can be fixed and formed by heating or solvent method.
Product Range

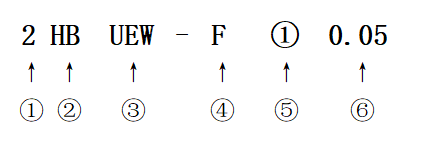

Designation of self –bonding wire
| Code | Bonding method | Bonding condition | Base insulation | Thermal class | Diameter(mm) |
|---|---|---|---|---|---|
| HB | Heat bonding | 110～220°C | Polyurethane(UEW) | 130,155,180 | 0.012～0.50 |
| SB | Solvent bonding | Methanol/Alcohol | Polyurethane(UEW) | 130,155,180 | 0.012～0.50 |
| SV | Heat or solvent bonding | Methanol/Alcohol + 180～220°C | Polyurethane(UEW) | 180 | 0.050～0.50 |
Product Range
① Thickness of insulation (1,2,3 subject to JIS standard.)
② Type of self –bonding layer (HB,SB, SV)
③ Type of base insulation
④ Thermal class (F=130, B=155, H=180)
⑤ Thermal property of self-bonding layer
⑥ Diameter (mm)
